DC brush motor 150w



Quick Details

  • sage: Boat, Electric Bicycle, Fan, Home Appliance, Boat,Car,Electric Bicycle,Fan,Home Appliance
  • Certification: CE, UL
  • Type: DC motor
  • Torque: 0.75Nm
  • Construction: Permanent Magnet
  • Commutation: Brush
  • Protect Feature: Totally Enclosed
  • Speed(RPM): 1900rpm
  • Continuous Current(A): 0.91A
  • Output Power: 150W
  • Voltage(V): 220V
  • Efficiency: IE 2
  • G.W: 7KG electric car motor
  • carton size: 31cm*19cm*20.5cm
  • insulation grade: F
  • diameter: 113mm electric car motor
  • manufacturing Experience: 23 years
  • package: carton
  • business type: manufacture
  • type: brush motor / electric car motor
  • color: can be customized

Specifications

1.electric car motor
2.UL,CE
3.220v,150w,1900rpm,Dia:113mm
4.Widely used
5.High efficiency, easy adjust speed,low price

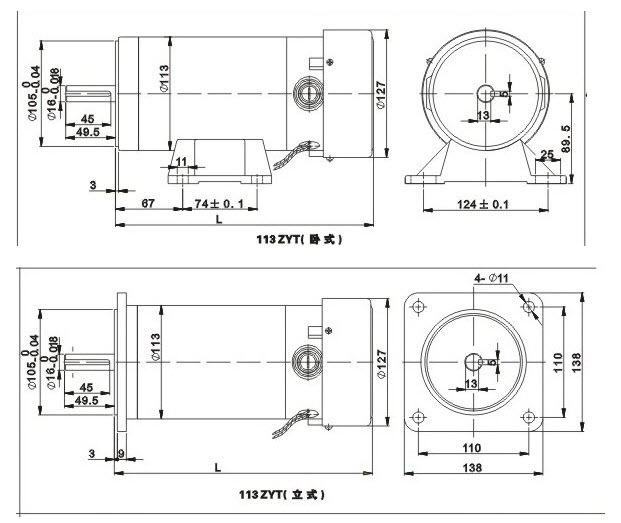

◊ Drawing

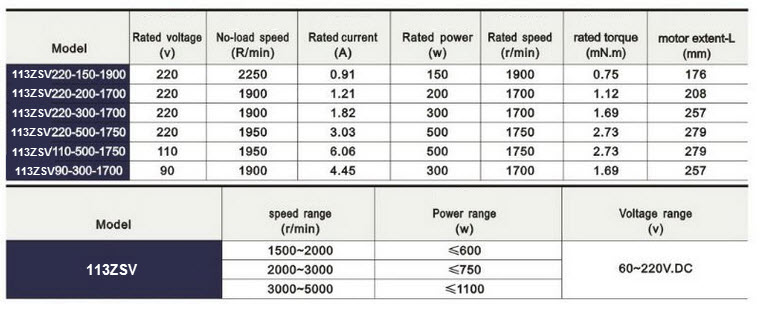

◊ Specification

◊ Model Description

113

ZSV

220

-

150

-

1900

1.

2.

3.



4.



5.




1.Body OD:113-fuselage outside diameter of 113mm

2.ZSV:ferrite permanent magnet DC motor

3.Voltage:220-220V.DC input

4.Power:150-rated output power of 150W

5.Speed:1900-Rated speed 1900rpm
